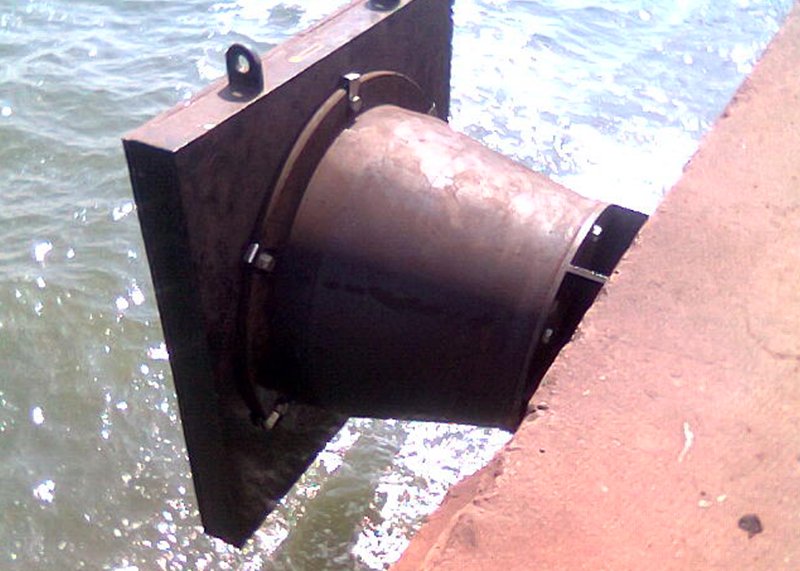

Cone Fender
- Feature
- Standard Sizes & Performance
- High Energy Low reaction.
- Better Stability under various loading.
- Easy and quick to install.
- Fender can be combined in various combinations.
| Size (Height In mm) |
Reaction Force (Tons) |
Reaction Force (Ton-M) |
| Rubber Grade |
| RE 1 |
RE 2 |
RE 1 |
RE 2 |
| RA 300 H |
11 |
10 |
1.6 |
1.5 |
| RA 350 H |
20 |
18 |
3.9 |
3.5 |
| RA 400 H |
32 |
29 |
7.5 |
6.8 |
| RA 500 H |
30 |
26 |
7.2 |
6.4 |
| RA 550 H |
39 |
35 |
10 |
9 |
| RA 600 H |
44 |
10 |
13 |
12 |
| RA 700 H |
63 |
57 |
23 |
21 |
| RA 800 H |
82 |
75 |
34 |
31 |
| RA 900 H |
104 |
95 |
48 |
43.5 |
| RA 1000 H |
128 |
117 |
67 |
61 |
| RA 1050 H |
141 |
129 |
76.5 |
69.5 |
| RA 1100 H |
154 |
140 |
88 |
80 |
| RA 1200 H |
185 |
167 |
114 |
103.5 |
| RA 1300 H |
217 |
196 |
145 |
132 |
| RA 1400 H |
251 |
228 |
181 |
165 |
| RA 1600 H |
328 |
297 |
271 |
247 |
| RA 1800 H |
414 |
378 |
387 |
352 |
- Tolerance : +/- 10 %
- Rated Defelection : 72%
- Performance Values are for Single Fender.
- Other Grades of Rubber is available on request.
