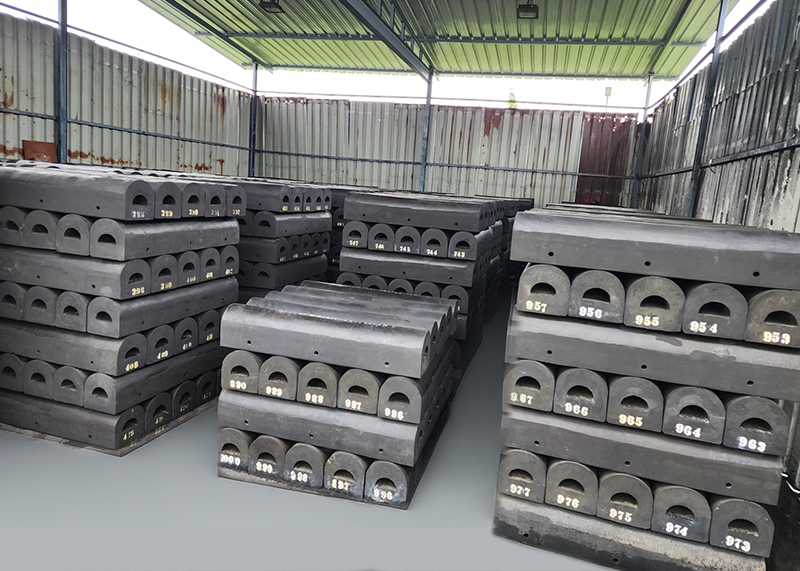

DO Type Fender

Product Detail
  • D type fenders are used for tugs, barges, workboats and pilot boats as side belting and protective fenders against heavy rubbing, brushing forms. These D type fenders display a higher energy absorption capacity, thus minimizing deface contact. These fenders can also be mounted on quay are by means of anchor belts. D type fenders are supplied with D hole Rounded hollow or solid. Long length D fenders can be supplied to match the Aft or Bow radius.
  • Performance Table
  • Installation Table
PERFORMANCE AT 50% DEFLECTION
Product Reference Base x Height x Round Hollow
mm
R
(Ton /m)
E
(Ton / M /m)
REP-DO-100 100 x 100 x 50 19.0 0.15
REP-DO-150 150 x 150 x 75 21.8 0.39
REP-DO-200 200 x 200 x 100 29.0 0.70
REP-DO-250 250 x 250 x 125 36.3 1.09
REP-DO-300 300 x 300 x 150 43.5 1.58
REP-DO-350 350 x 350 x 175 51.0 2.15
REP-DO-400 400 x 400 x 200 56.0 2.81
Apart for the above, any other size, shape can be developed as per customized formats The data above, are examples for reference only and are not as any specific standards. They can be accepted as per one's requirement.

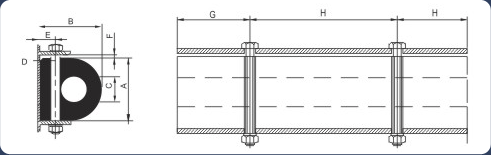

Installation E 2
A B C D E F G H Flat Bar Bolt Size
100 100 50 15 25 10 90 / 130 200 / 300 50 * 6 M12
125 125 50 15 25 12 90 / 130 200 / 300 50 * 6 M12
150 150 60 20 30 12 110 / 150 250 / 300 60 * 8 M16
200 200 100 25 45 15 130 / 180 300 / 400 80 * 10 M20
250 250 100 30 50 20 140 / 200 350 / 450 100 * 10 M24
300 300 125 30 60 25 140 / 200 350 / 450 110 * 12 M24
400 400 200 35 80 30 140 / 200 350 / 450 130 * 15 M30
