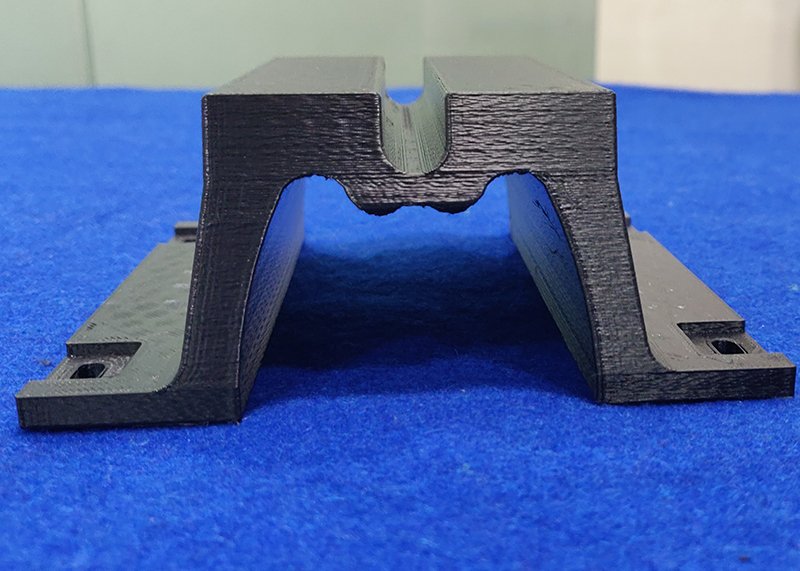

M Type Fender
- Feature
- Standard Sizes & Performance
- High Energy Absorption & low reation force.
- Low Face Pressure
- Reduced Stress concentration.
- Long Life.
- Easy Installation.
- A wide selection of sizes and energy absorption capacities
- Maintenance free use.
- Embedded Metal parts fully protected against corrosion & mechanical damage
- If required Fender can be supplied with UHMWPE Pads on Top.
| Size (Height In mm) |
Reaction Force (Tons) |
Reaction Force (Ton-M) |
| Rubber Grade |
| RE 1 |
RE 2 |
RE 1 |
RE 2 |
| RA 250 H |
39 |
31 |
3.2 |
2.5 |
| RA 300 H |
46 |
49 |
4.5 |
3.6 |
| RA 400 H |
61 |
25 |
8.1 |
6.3 |
| RA 500 H |
77 |
62 |
13 |
10 |
| RA 600 H |
92 |
74 |
18.5 |
14 |
| RA 800 H |
123 |
99 |
33 |
25 |
| RA 1000 H |
153 |
123 |
51 |
37 |
- Tolerance : +/- 10 %
- Above Performance details are for 1 meter of Fender length
- Rated Defelection : 52.50%
- Other Grades of Rubber is available on request.
- Length Available ( in Meter ) : 1.0, 1.5, 2.0, 2.5, 3.0,3.5
