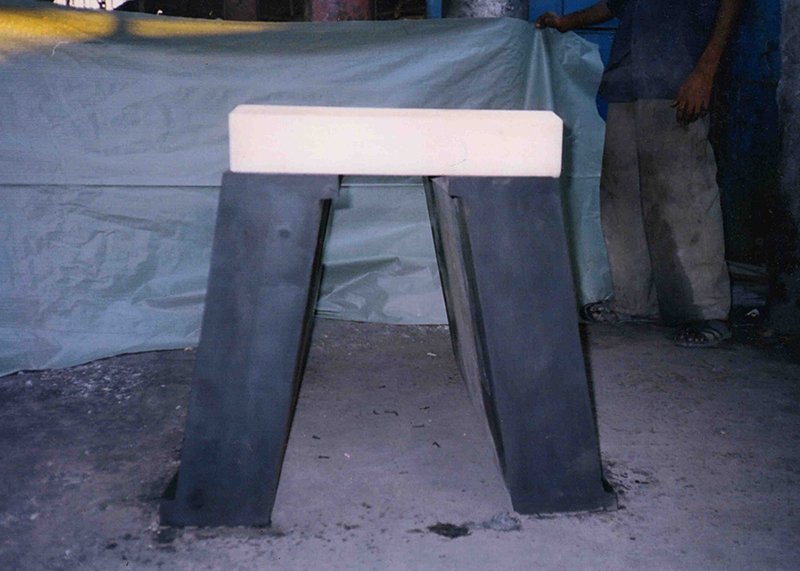

PI Fender
- Feature
- Standard Sizes & Performance
- High Energy Low reaction.
- Excellent Shear Resistance.
- Fender Shield can be bolted from Front.
- Elements can be combined in various combinations
- Easy and quick to install.
| Size (Height In mm) |
Reaction Force (Tons) |
Reaction Force (Ton-M) |
| Rubber Grade |
| RE 1 |
RE 2 |
RE 1 |
RE 2 |
| RA 250 H |
16.0 |
15.0 |
1.6 |
14.5 |
| RA 300 H |
20.0 |
18.0 |
24.0 |
22.0 |
| RA 400 H |
24.0 |
22.0 |
4.5 |
4.0 |
| RA 500 H |
30.0 |
27.0 |
6.9 |
6.3 |
| RA 550 H |
32.0 |
30.0 |
8.4 |
7.6 |
| RA 600 H |
35.0 |
31.5 |
9.5 |
8.5 |
| RA 700 H |
41.0 |
38.0 |
13.0 |
12.5 |
| RA 750 H |
45.0 |
40.0 |
15.0 |
14.0 |
| RA 800 H |
47.0 |
43.0 |
17.0 |
16.0 |
| RA 900 H |
53.0 |
48.0 |
22.0 |
20.0 |
| RA 1000 H |
59.0 |
53.0 |
27.0 |
25.0 |
| RA 1200 H |
71.0 |
64.0 |
39.0 |
35.0 |
| RA 1400 H |
82.0 |
75.0 |
53.0 |
48.0 |
| RA 1600 H |
94.0 |
85.0 |
70.0 |
69.0 |
