Square Fender
Product Detail

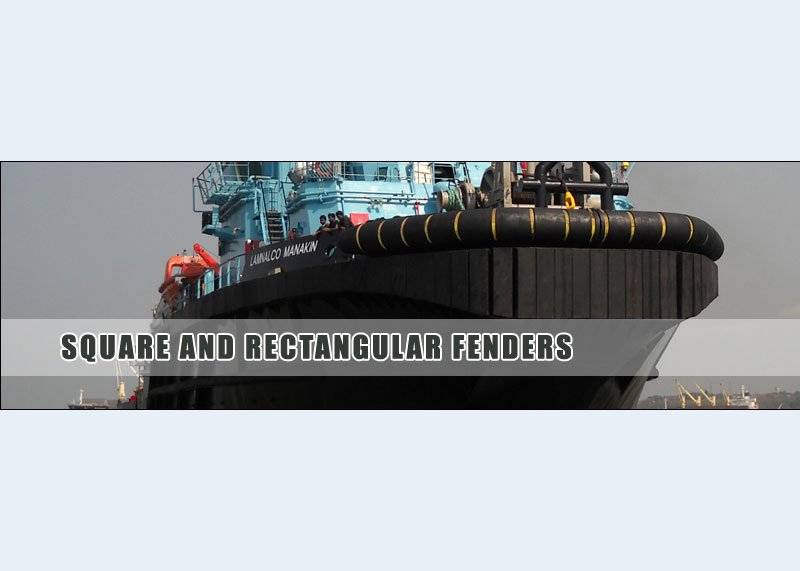

  • Square type fenders are used for tugs,barges,workboats and pilot boats as side belting and protective fenders against heavy rubbing, brushing and pushing forms. These D type fenders display a higher energy absorption capacity, thus minimizing deface contact. These fenders can also be mounted quay are by means of anchor belts. Square type fenders are supplied with D hole Rounded hollow or solid. Long length Square fenders can be supplied to match the Aft or Bow radius.
SD FENDERS PERFORMANCE Table
PERFORMANCE AT 50% DEFLECTION
Product Reference Base x Height x D hollow
mm		 R
(Ton /m)		 E
(Ton / M /m)
REP-SD150 150 x 150 x 75 12.4 0.62
REP-SD200 200 x 200 x 100 29.8 1.11
REP-SD250 250 x 250 x 125 37.3 1.73
REP-SD300 300 x 300 x 150 44.7 2.49
REP-SD350 350 x 350 x 175 53.0 3.39
REP-SD400 400 x 400 x 200 59.8 4.44
SO FENDERS PERFORMANCE Table
Apart for the above, any other size, shape can be developed as per customized formats The data above, are examples for reference only and are not as any specific standards. They can be accepted as per one's requirement.
PERFORMANCE AT 50% DEFLECTION
Product Reference Base x Height x D hollow
mm		 R
(Ton /m)		 E
(Ton / M /m)
REP-SO150 150 x 150 x 75 16.8 0.39
REP-SO200 200 x 200 x 100 21.0 0.69
REP-SO250 250 x 250 x 125 26.0 1.01
REP-SO300 300 x 300 x 150 31.0 1.56
REP-SO350 350 x 350 x 175 34.5 1.95
REP-SO400 400 x 400 x 200 41.0 2.52
