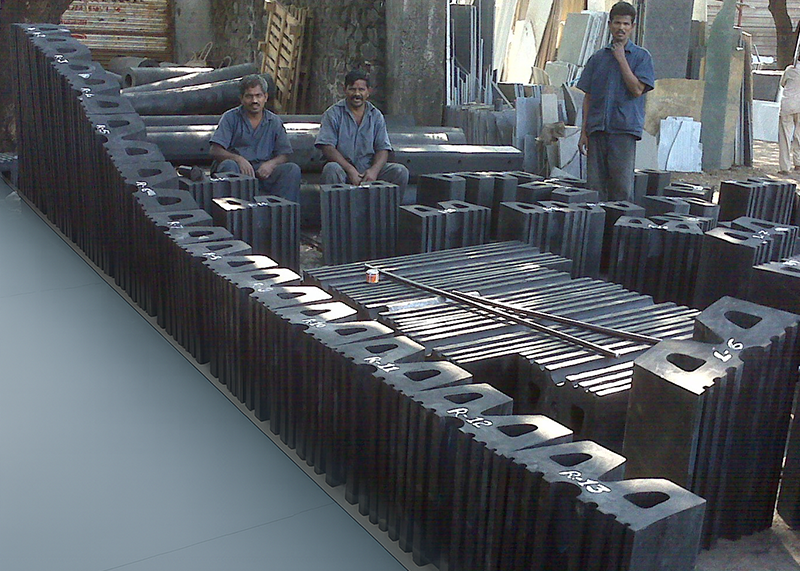

W Type Fender

Product Category

W Type Fender
Product Detail
  • W Type fenders are installed on to the bow and the aft portions of Ocean going tugs, to product the hull of the vesse, against damages caused during pushing and pulling operations / towage . These fenders are installed in similar manner as those of key Hole Fenders.
  • Features
  • Applications

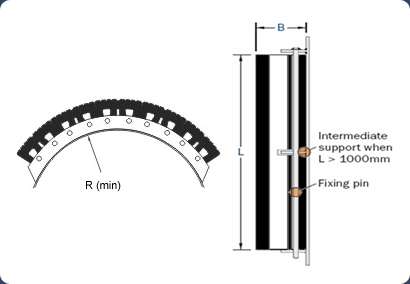

  • W Type Fenders Installation Table
  • Extreme-duty design
  • Twin-leg attachment
  • Open bone for easy installation
  • Grooved for extra grip
  • Fits around tight bends
  • Ocean-going tugs
  • Icebreakers
  • Large harbour tugs
  • Bridge and pile protection
Product Reference A x B
mm		 Pin Dia
mm		 Flat Bar
mm		 R
min		 L
max
REP-W320 320 x 200 25 100 x 20 600 2000
REP-W400 400 x 250 30 120 x 20 800 2000
REP-W480 480 x 300 40 140 x 20 900 2000
REP-W500 500 x 400 40 150 x 20 1000 2000
REP-W500 500 x 450 40 150 x 20 1000 2000
Apart for the above, any other size, shape can be developed as per customized formats The data above, are examples for reference only and are not as any specific standards. They can be accepted as per one's requirement.
Product Reference A x B x C
mm
REP-M600 600 x 400 x 550
